Build from sources

Introduction

Run simulations by simply plugging your git repository.

Pre-requisites#

• Private Repository: Build from Sources requires a configured Private Repository to store build artifacts.
• Private Locations: Build from Sources is only compatible with Private Locations. Ensure these are configured first.
• Control Plane image: Use gatlingcorp/control-plane:latest-builder instead of gatlingcorp/control-plane:latest.
• Allocate adequate CPU and memory resources according to your project’s compilation needs.
• Git repository with a compatible Gatling plugin version configured

Configuration#

Git authentication#

Cloning over SSH using an SSH key#

Mount SSH Configuration

• Provide an SSH configuration mounted at /app/.ssh into the container.
• Ensure the mounted folder is owned by the Gatling user (UID 1001): chown -R 1001 /app/.ssh.

Update SSH Config:

Edit /app/.ssh/config to specify your identity file. For example (GitHub):

Host github.com
IdentityFile /app/.ssh/id_gatling
StrictHostKeyChecking no

Set Key Permissions:

Ensure /app/.ssh/id_gatling has permissions 400:

• Owner: Read
• Group: -
• Others: -

Host Verification (Optional):

If you set StrictHostKeyChecking yes, manually add hosts keys to /app/.ssh/known_hosts.

Cloning over HTTPS using git credentials#

When authenticating with Git over HTTPS (via password or token), you can specify credentials in the Control Plane configuration file (e.g., control-plane.conf):

control-plane {
  # ...
  builder {
    git.global.credentials.https {
      username = <username> # (optional)
      password = <token>
    }
  }
}

Security Best Practices:

• Use personal access tokens instead of passwords whenever possible.
• Limit token permissions to read-only access.
• Never include credentials in repository URLs within Gatling Enterprise.

Build tools#

Gatling Plugin Version: The minimum compatible version of each build tool plugin that supports build from sources.

Image Cache Path: Ensure build tool caches persist across different upgrades by mounting a volume to the given path.

Usage#

Git repositories#

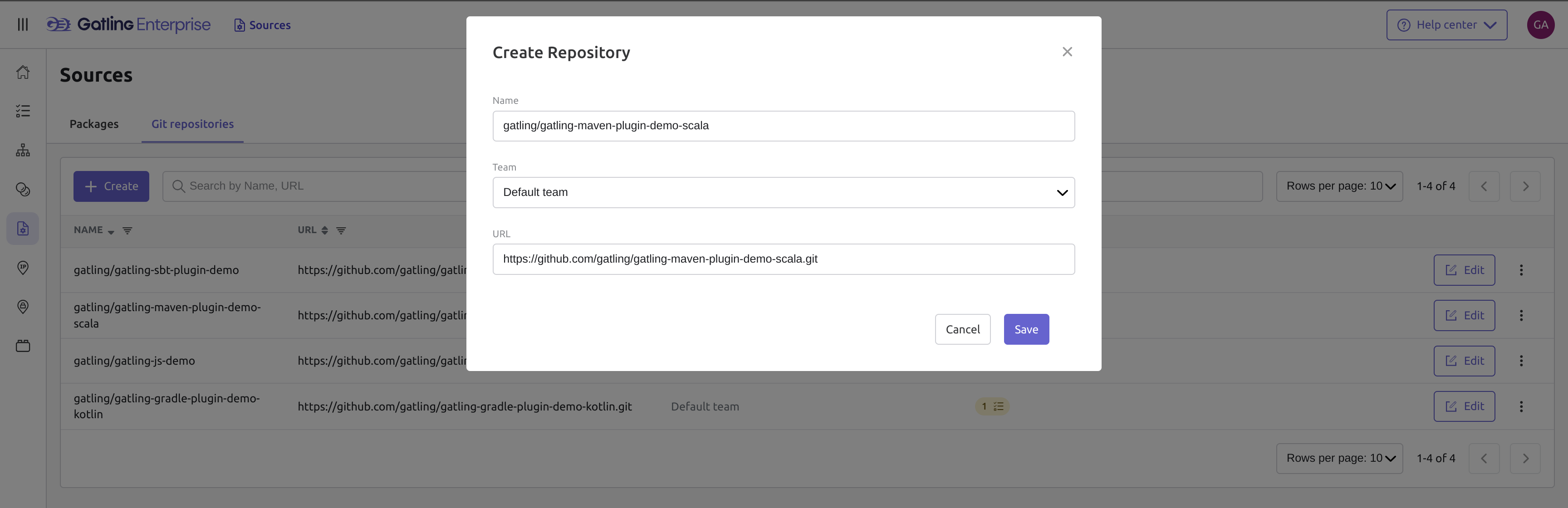

Navigate to Sources → Git repositories

Create a new repository by providing:

• Name
• Team (note: simulations built from this repository will inherit this team)
• URL (e.g: git@github.com:gatling/gatling.git)

From repository actions, you can create new simulations.

Creating simulations from sources#

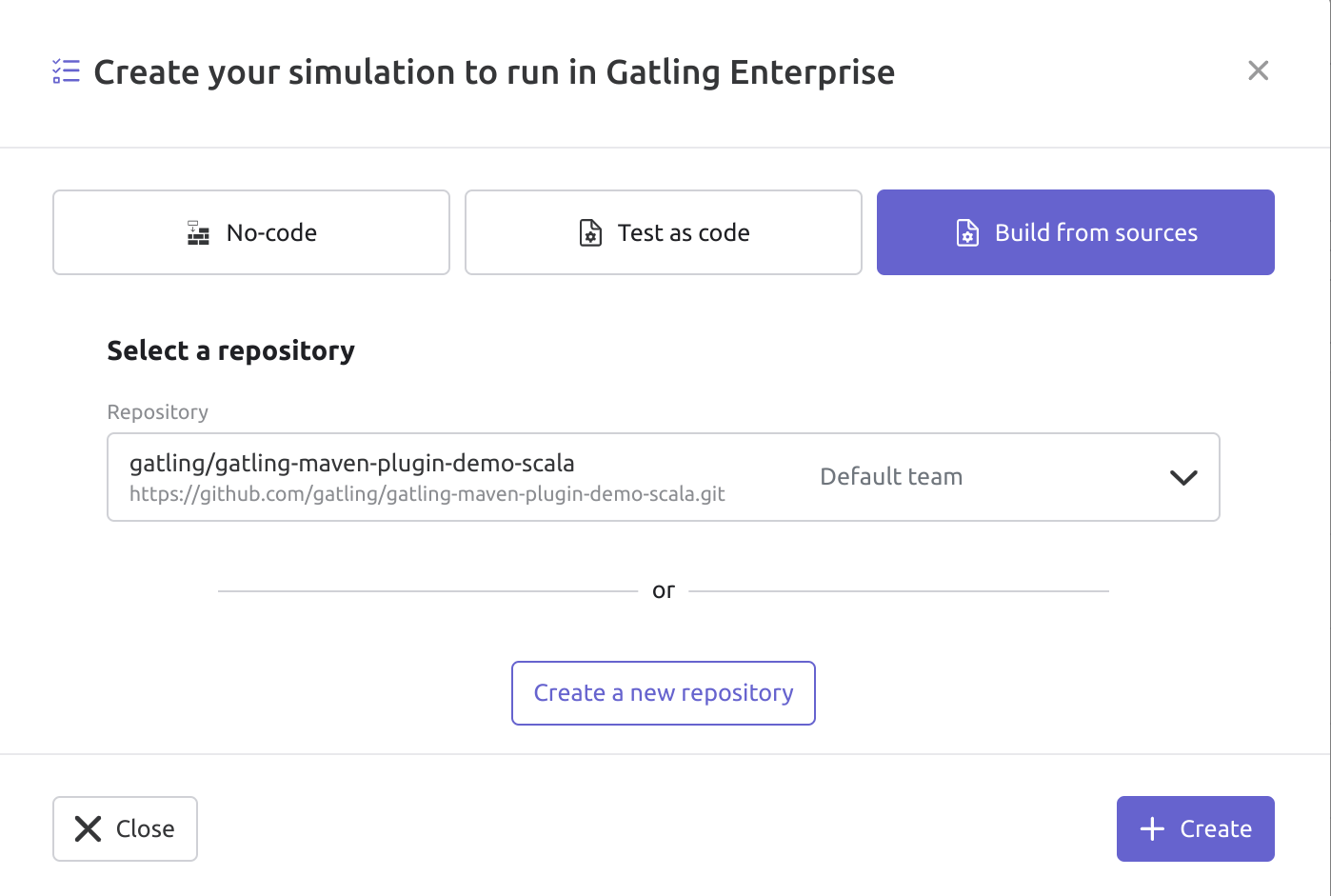

Go to Simulations → Create Simulation → Select Build from sources

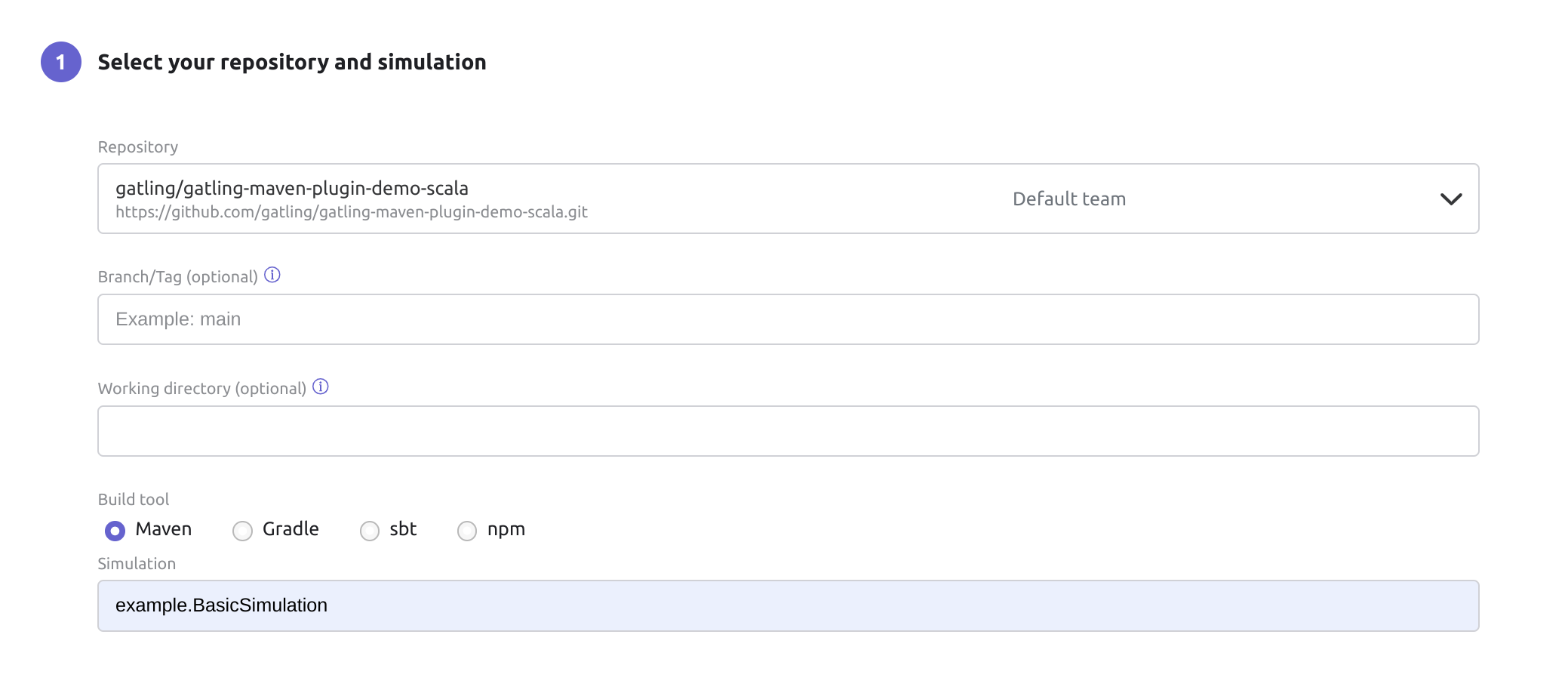

Configure:

• Source repository
• Branch (defaults to repository default branch)
• Working directory (defaults to repository root)
• Build tool of your project
• Simulation class
  • JVM projects: Enter the fully qualified name (example: io.gatling.DemoSimulation)
  • JavaScript projects: Use the simulation name (example: demoSimulation for demoSimulation.gatling.js)
• Configure private locations and other simulation properties
• Save and launch your simulation
